A cabin humidity sensor should be placed where it can measure the air needed by the vehicle’s control system. For general cabin humidity control, that means a ventilated location exposed to representative passenger-compartment air, protected from direct vent discharge, sunlight, and local moisture sources. For windshield fog prevention, a position near the inner windshield surface may be more appropriate, especially when the sensing assembly also measures or estimates glass temperature.

Cabin humidity sensor placement therefore starts with the sensing objective. A location that works well for cabin comfort control may not provide the information needed to predict condensation on cold glass. Before choosing a mounting point, establish which air conditions the system needs to observe and how the resulting signal will influence HVAC operation.

Decide whether the sensor is measuring cabin air or windshield fog risk

Relative humidity describes how close air is to saturation at its current temperature. It changes with temperature even when the amount of water vapor remains the same. A sensor warmed by nearby electronics can consequently report lower relative humidity than a cooler sensor exposed to air with similar moisture content.

This matters because windshield condensation depends on the relationship between air moisture and glass temperature. Fog can form when the inner glass surface reaches or falls below the dew point of the adjacent air. Cabin relative humidity alone does not establish that condition.

A system intended to anticipate fogging needs humidity and air-temperature information, together with a measurement or estimate of the relevant windshield temperature. These inputs may come from a combined windshield-mounted assembly or from separate sensors and a control model. The placement must suit the chosen architecture.

A duct-mounted sensor can serve a useful control function, but its reading should not automatically be treated as cabin humidity. Its relationship to cabin conditions changes with blower speed, recirculation setting, evaporator operation, and air distribution.

Where to place a sensor for representative cabin humidity

For general cabin measurement, look for a location with regular air exchange and limited exposure to local disturbances. A ventilated trim module or an interior sensing assembly can be suitable when air reaches the sensing element freely and the surrounding structure does not impose a large temperature bias.

An aspirated interior sensor assembly may also be a candidate. By drawing cabin air through a defined passage, aspiration can reduce dependence on weak natural circulation. However, adding a humidity element to an existing temperature-sensor housing still requires evaluation of airflow, internal heat sources, and response time.

The geometric center of the cabin is not automatically the best mounting point. Packaging, airflow, occupant exposure, and thermal conditions matter more than symmetry. A discreet opening in a well-ventilated trim surface may provide a more useful measurement than a centrally positioned sensor trapped inside a closed console.

Evaluate the complete path from the passenger compartment to the sensing element. A visible grille does not guarantee effective sampling if foam, wiring, backing material, or a narrow internal passage restricts airflow. The housing should allow moisture changes to reach the sensor without leaving it in a stagnant pocket.

Large cabins introduce another limitation: front and rear conditions can diverge. Rear passengers, wet clothing, separate HVAC zones, and uneven ventilation can create moisture gradients. Whether one sensor is sufficient depends on the control objective and the acceptable uncertainty across occupied areas.

When windshield-adjacent placement makes sense

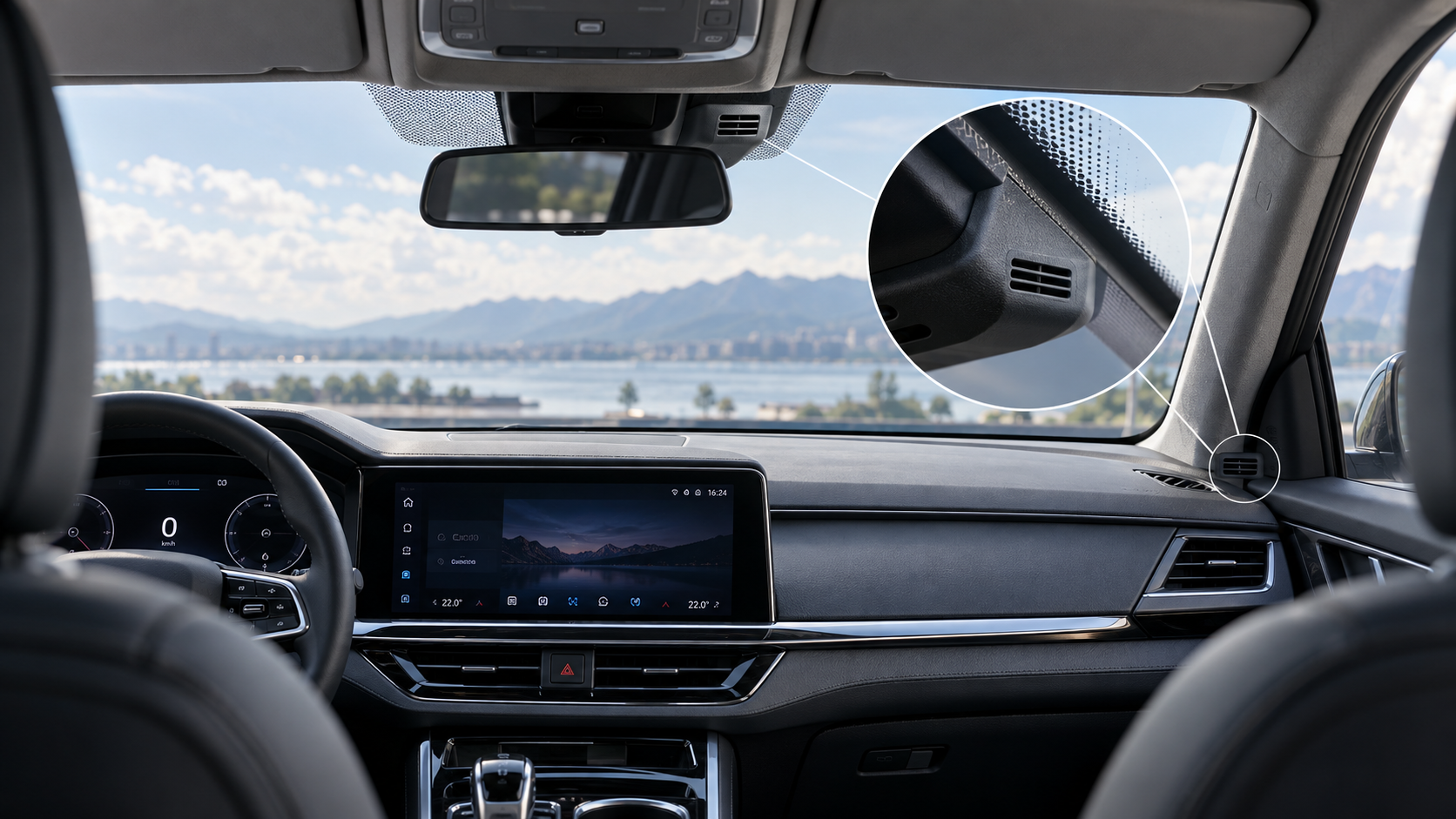

For an anti-fog system, an upper windshield module near the interior mirror can be a practical packaging candidate. It can accommodate sensing hardware near the glass while keeping the assembly outside much of the driver’s direct view. Its suitability still depends on the module design, glass construction, airflow, and temperature-sensing method.

The humidity element needs access to the air relevant to condensation detection. Sealing it inside the mirror cover may isolate it from that air. Positioning it beside heat-producing electronics may introduce a different bias. The air-sensing element and any glass-temperature sensor need distinct thermal paths appropriate to their functions.

A windshield-mounted assembly may intentionally place a temperature-sensing part in thermal contact with the glass. That does not mean the humidity element should touch the glass or receive liquid water. Its exposure and protection should follow the sensing design, including how it handles condensation and subsequent recovery.

The diagram should distinguish a representative cabin-air sampling location from a windshield-adjacent sensing location, with vent airflow, solar exposure, and nearby heat sources identified.

Defroster airflow requires particular attention. A sensor strongly influenced by warm, dry discharge may report improving conditions before other windshield areas have cleared. Conversely, a location with weak air circulation may recover more slowly than the driver’s viewing area. Placement and control calibration must account for this spatial difference.

Heated glass, solar-control glazing, nearby camera modules, and windshield replacement variants can also change the local thermal environment. A location validated with one glazing and equipment configuration may need reassessment when those features change.

Locations that commonly distort the reading

Directly in an HVAC outlet stream

Supply air can differ sharply from cabin air in temperature and moisture content. A sensor facing an outlet may follow compressor cycling or heater output more closely than passenger-compartment conditions. Changing the outlet direction can then alter the reading without a comparable change throughout the cabin.

There is no universal separation distance that solves this problem. Outlet geometry, airflow velocity, trim shape, and blower settings determine the affected area. Evaluate whether the proposed position remains representative across the vehicle’s operating modes.

On a sun-heated surface or beside electronics

Direct sunlight can heat the sensor housing, while displays, processors, lamps, and other electronics can warm it from behind. Both effects can alter relative humidity readings and delay recovery after operating conditions change.

A nearby air-temperature measurement helps interpret humidity, but it cannot correct every installation problem. If the temperature and humidity elements experience different thermal conditions, the calculated dew point may also become unreliable during transients. Mechanical design and sensor arrangement remain important.

Close to a local moisture source

An occupant’s breath, wet outerwear, a damp floor mat, or an open drink can create a local moisture plume. A sensor directly exposed to it may trigger a response that is disproportionate to conditions elsewhere.

Floor-level placement deserves scrutiny because of water ingress, footwear moisture, dirt, and weak air mixing. Door cavities and enclosed storage compartments present similar concerns. Such positions may be appropriate for dedicated moisture monitoring, but usually offer poor access to representative cabin air.

Make the mounting design support the measurement

The sensor’s installed behavior depends on its enclosure as much as its nominal specifications. A humidity element with a fast laboratory response can respond slowly once fitted behind restrictive trim or a protective membrane. Assess response through the complete production housing.

Protection must balance contamination resistance with vapor exchange. Dust, cleaning products, aerosols, adhesive emissions, and interior treatments can affect sensing performance. Any protective layer should be compatible with the sensor and evaluated for its effect on response, recovery, and long-term stability.

Mounting orientation should prevent water from collecting around the sensing opening. Nearby materials should also be considered: absorbent foam or fabric can store moisture and release it gradually, making the assembly follow the material’s condition rather than the surrounding air.

Service access matters too. Windshield replacement, mirror-cover removal, and interior cleaning can disturb the housing, block its opening, or change its position. Locating features and assembly controls should help restore the intended installation consistently.

Validate the location through changing cabin conditions

A steady reading in a parked vehicle provides limited evidence of suitability. Placement problems often appear during transitions: passengers entering a cold vehicle, a change from fresh air to recirculation, rapid heating, or air-conditioning activation after a humid soak.

Validation should compare the installed sensor with suitable reference measurements and observe the resulting HVAC behavior. For representative cabin sensing, compare conditions across relevant occupied areas. For anti-fog control, include windshield temperature and observation of condensation in the areas the system is intended to protect.

Useful evaluation conditions include:

• Cold glass with rising cabin moisture: Assess whether the system identifies increasing fog risk early enough for the intended response.
• Solar heating followed by cooling: Check for housing temperature bias and delayed recovery.
• Changes in airflow mode and blower speed: Identify positions dominated by a particular vent stream.
• Wet occupants or damp interior materials: Examine local moisture sensitivity and cabin-wide response.
• Recirculation and fresh-air transitions: Check whether the signal follows relevant moisture changes without excessive delay.
• Condensation exposure and drying: Assess recovery, signal plausibility, and control behavior while the element is affected.

Judge the location by the decisions it enables. A plausible humidity value can still be unsuitable if it arrives too late to support defogging. An unstable local reading can also cause unnecessary compressor use or repeated mode changes.

Filtering can reduce signal fluctuations, but it adds delay. Calibration can compensate for repeatable installation effects, but variable solar heating or unpredictable airflow is harder to correct. Improving the sampling location should remain an option when software compensation cannot produce consistent behavior.

What to establish before approving a production location

Approve the sensor, housing, position, and control strategy as a connected system. A replacement component with the same connector and similar nominal accuracy may have different response, contamination tolerance, or recovery behavior. Those differences can matter in an installation calibrated around another sensing element.

The release decision should establish which air volume is being sampled, how temperature affects the reading, how quickly moisture changes reach the element, and how the system responds when the signal is unavailable or implausible. Production inspection should also address blocked openings, incorrect orientation, missing seals, and housing variations that alter airflow.

For an existing vehicle, use the intended mounting position and specified assembly arrangement. Relocating a factory sensor to a seemingly more central or better-ventilated position can change the relationship between its signal and the HVAC calibration.

For a new design, select candidate positions from the measurement objective, then compare their installed performance under realistic thermal and moisture transitions. The location is ready for release when it consistently supplies the information the control system needs, with limitations understood across the relevant vehicle configurations.
